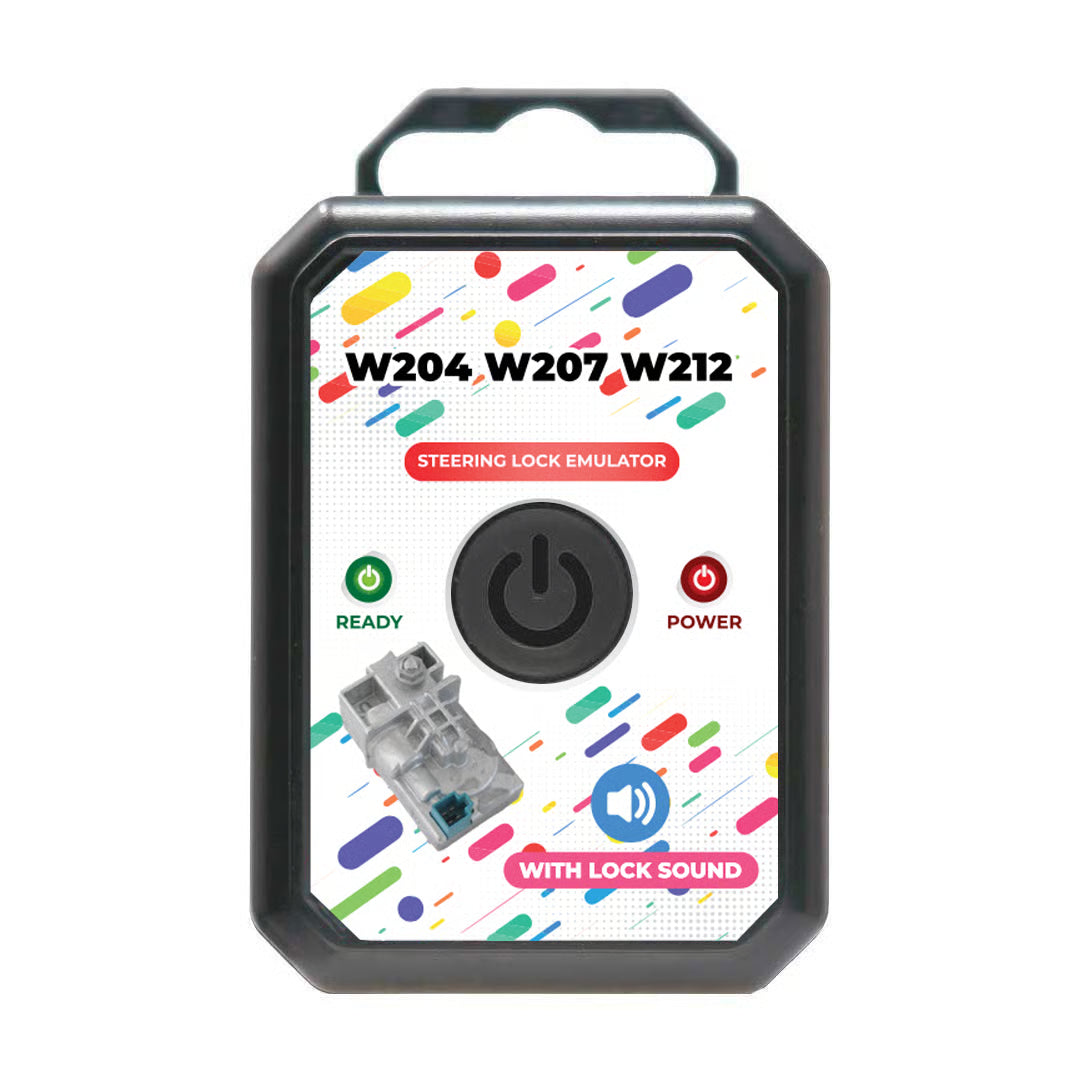

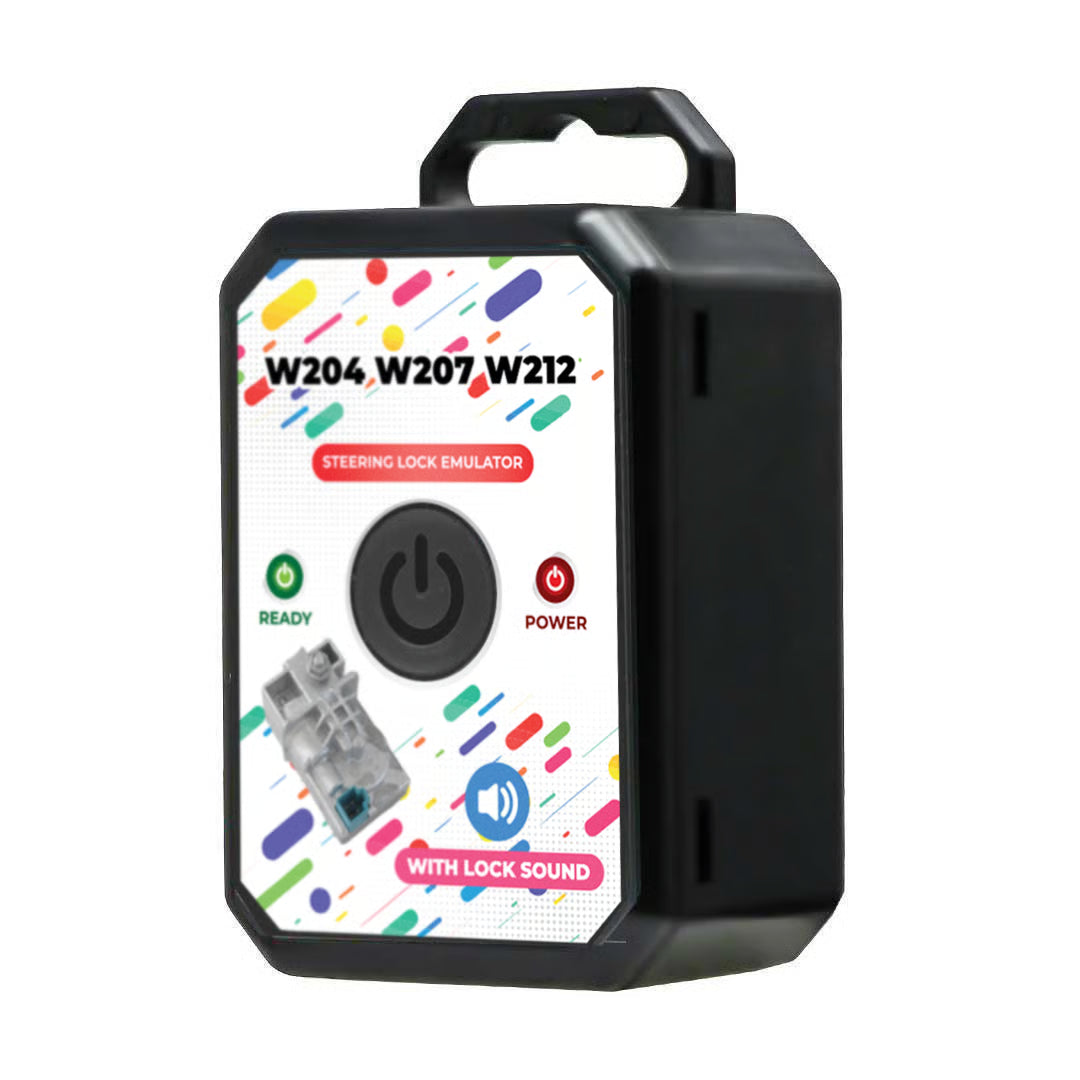

ESL ELV Steering Wheel Lock Emulator Fix for Mercedes C / E Class W204 W207 W212

Steering Column Lock Problem Fix

Latest 2023 model with enhanced stability

The Emulator is an easy fix to a very common issue with Steering Column Lock. It works by replacing original ESL signal. When the steering lock malfunctions, and its stuck in lock position, it is required to physically remove it from the vehicle. The emulator will simulate the electronic signal of the steering lock, enabling the car to start.

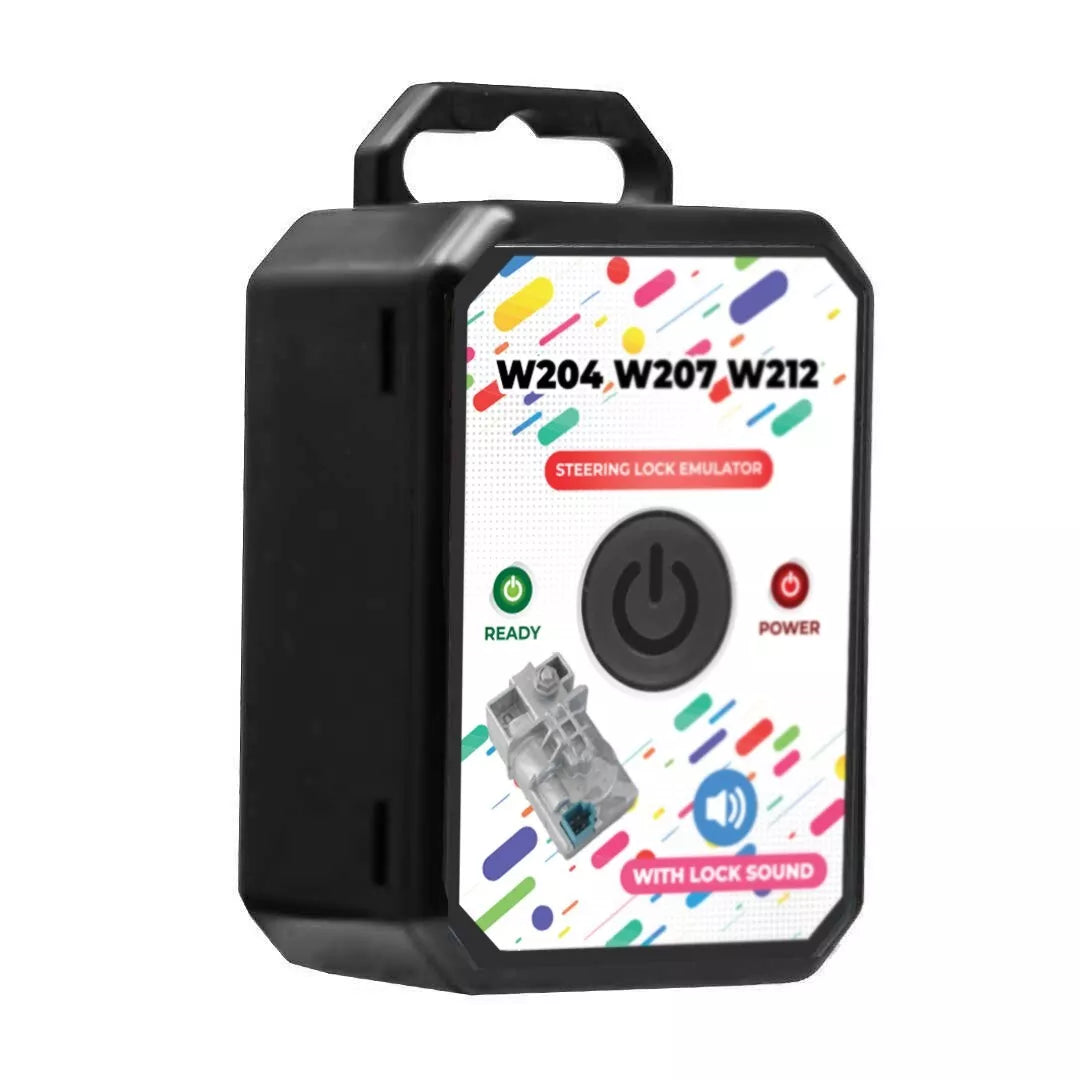

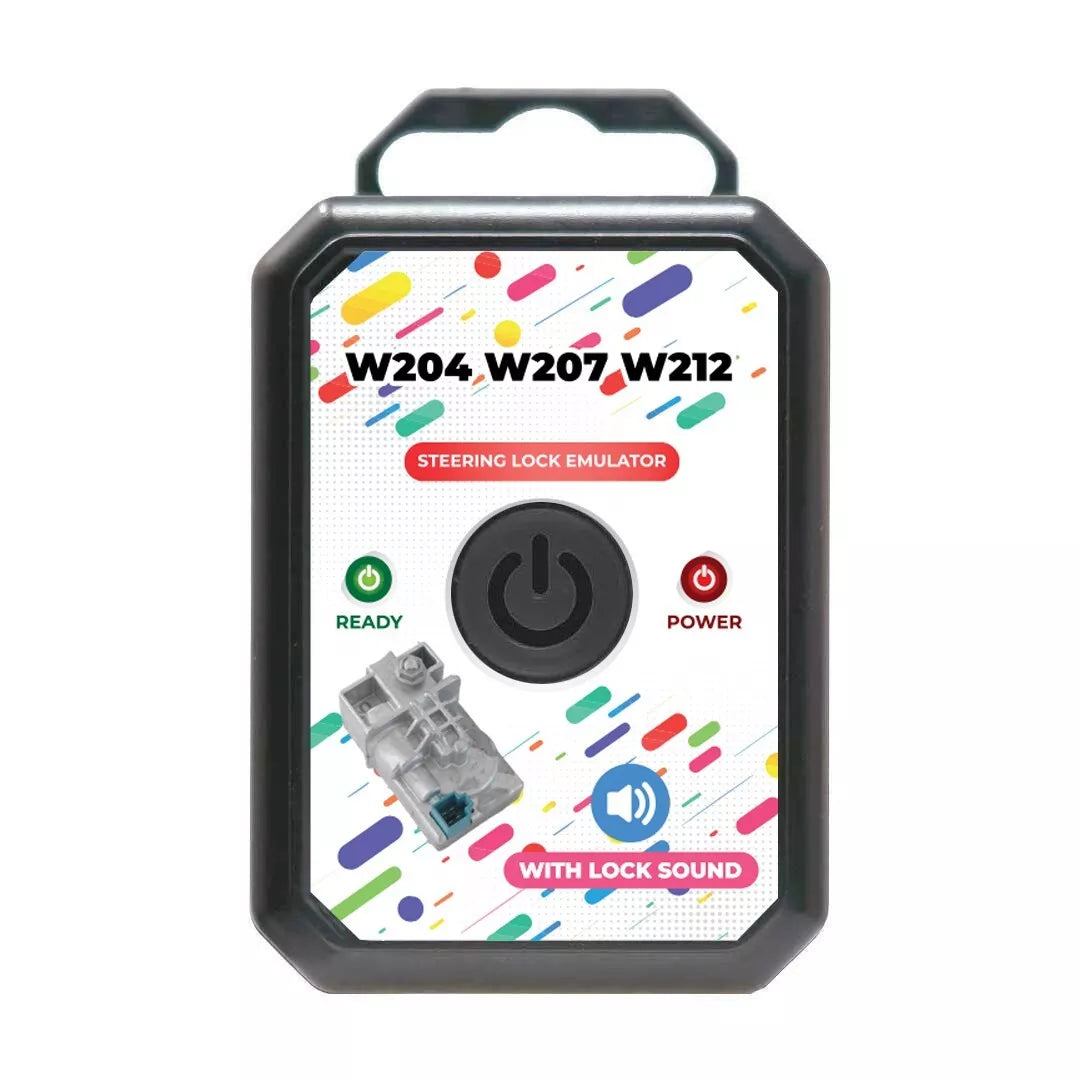

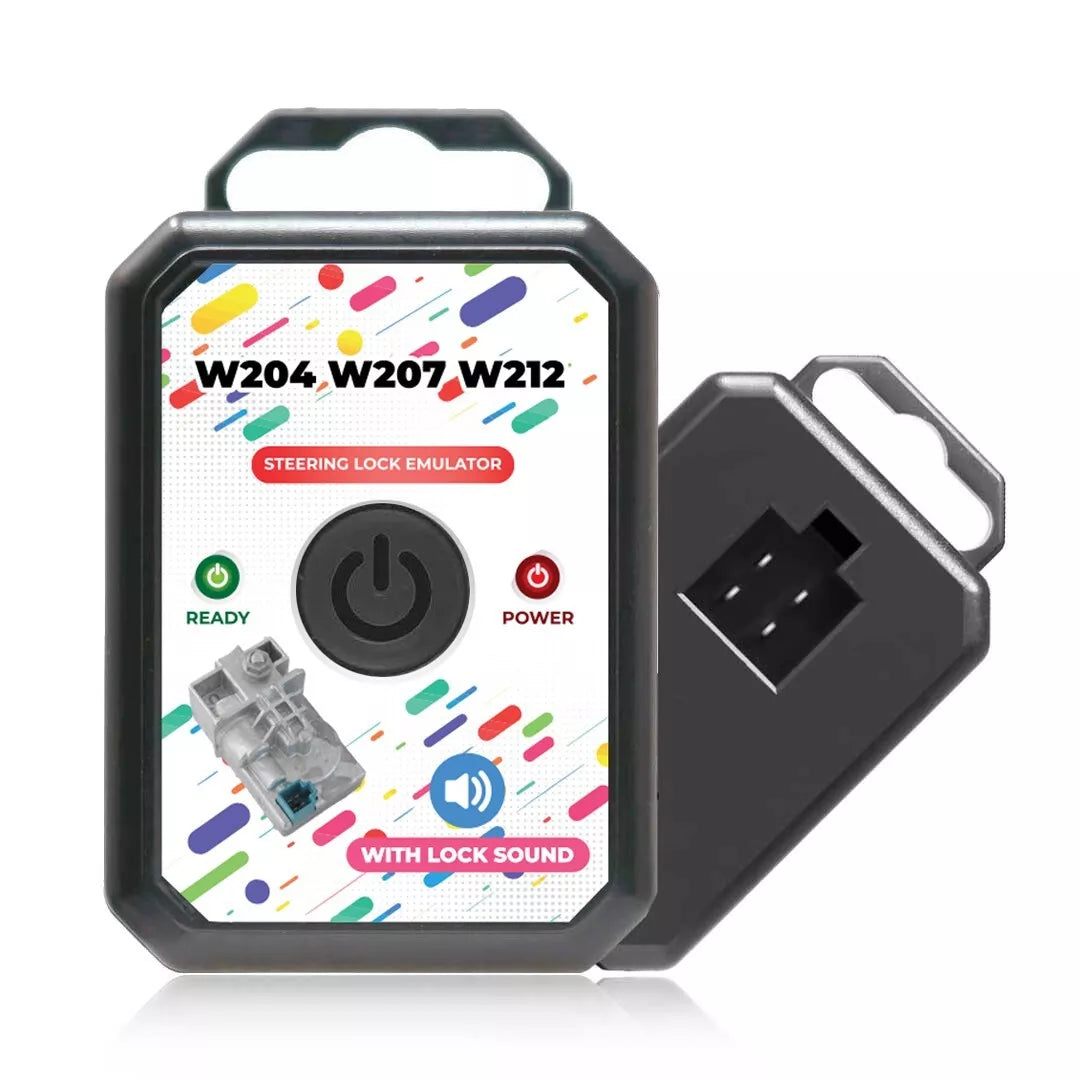

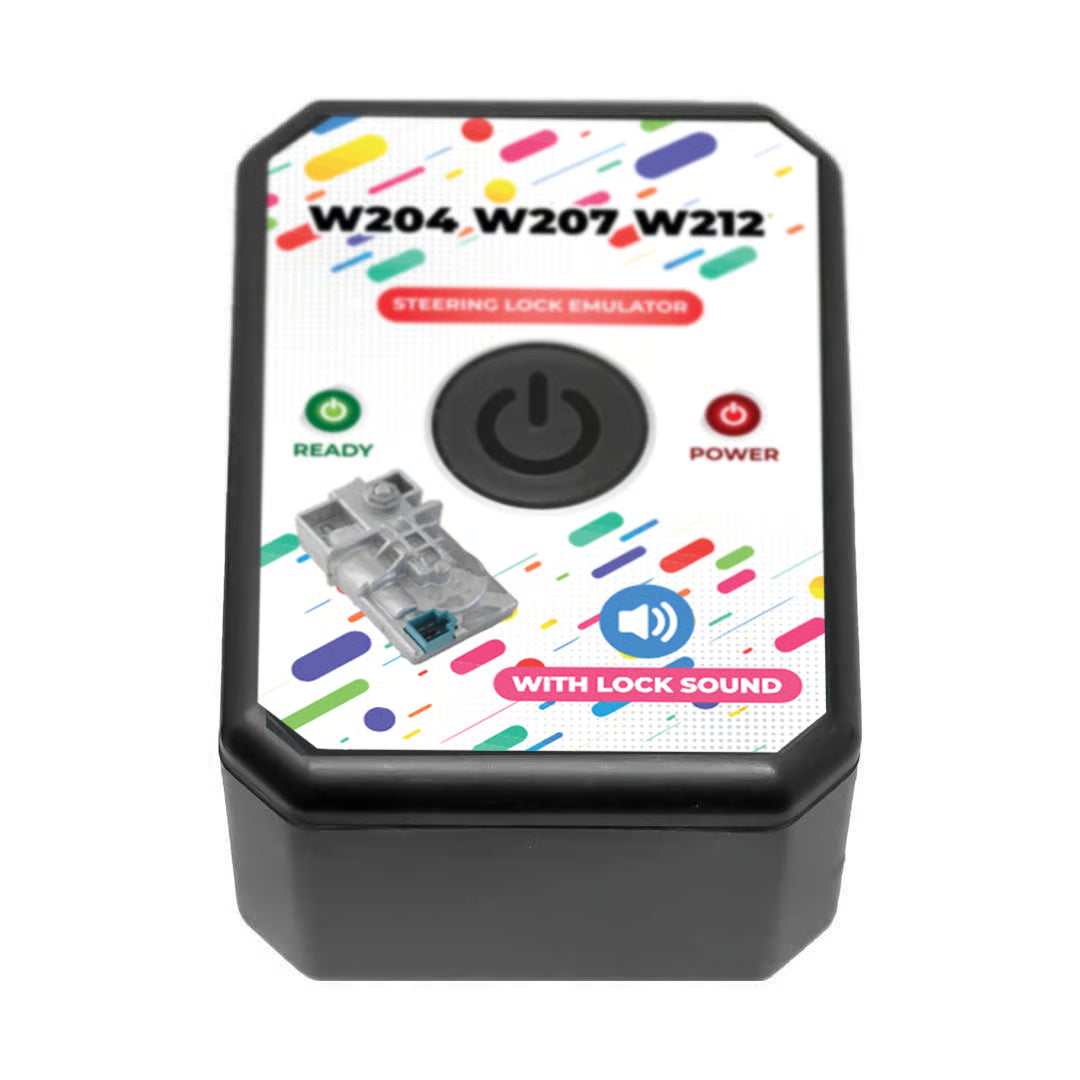

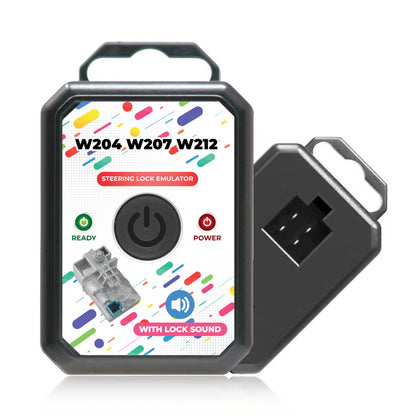

The emulator includes both RED and GREEN LED Lights as indicators of correct functioning with lock sound.

Please note: This emulator will need prior coding to match the vehicle’s EIS and key, but this may be done by any competent automotive locksmith.

Compatible with:

Mercedes W204, W207, W212 (2007 to 2014)

Some fault codes associated with the problem:

A22449 – The electronic ignition lock has a malfunction.  There is an internal electrical fault

A25407 – The electric steering lock has a malfunction. There is a mechanical fault

A25408 – The electric steering lock malfunction. There is a signal fault or the message is faulty

A25409 – The electric steering lock has a malfunction. There is a component fault

A25464 – The electric steering lock has a malfunction. There is an implausible signal

What is ELV / ESL?

An ESL an electronic steering lock which is powered by a motor. At times, it malfunctions and this emulator provides a solution to this.

If you are facing any of the problems mentioned below then it means your ELV / ESL is malfunctioning:

• - Car won’t start.

• - Dashboard lights wont turn on

• - Steering wheel can’t be unlocked

• - Auto parts won't respond when the ignition is switched on

• - Unable to turn the key in the ignition

• - The steering remains locked with the key in the ignition

• - The ignition key turns, but no lights on the dash

• - The steering Lock is OFF with no key in the ignition

 Installation:

1.    Unplug the ELV Wire from the Car Steering Lock Unit

2.    If Vehicle Steering Lock Is in Lock Mode Steering Lock Must Be Removed

3.    Calculate Mercedes EIS Password Using Mercedes Key Programmer

4.    Mercedes ESL Emulator Programming Must Be Done Using Mercedes Key Programming Devic such as Abrites AVDI, Xhorse VVDI MB, Autel IM608, etc.

5.    Connect the Mercedes ELV Emulator to the Car and Start the Car.
